Two/Three-Way Gel Filled Mains Electrical Pigtail Connector

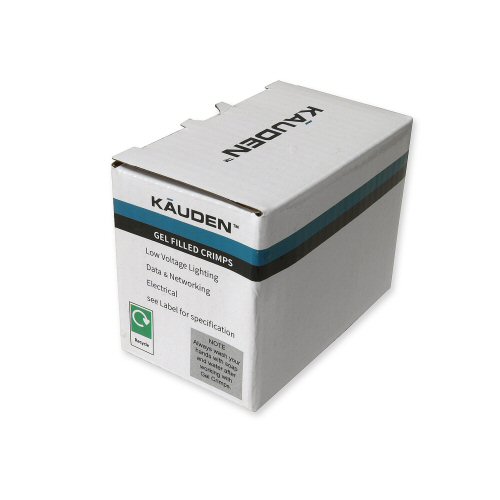

For connecting two or three solid or stranded core mains wires, Supplied in box of 20
Gel Filled 22 to 14 AWG covering a good range of wire sizes
Filled with a moisture resistant compound to provide moisture proof connections
No need to strip the insulation as uses Insulation Displacement Connecters (IDC)
Ideal for Signs, Fixtures Lighting installations and even Lawnmowers

Item code: LJBR4 Category: Jelly Crimps

PRODUCT DESCRIPTION

Designed for applications covering aerial, buried and underground locations. Filled with sealant ensuring performance in the most stringent environmental conditions. The connector can provide total environmental sealing around IDC-contacts.

The filling compound is prepared from fully synthetic dimethyl silicone fluid. All material is suitable for operation with maximum temperature up to 70 degrees C .

Meets both the Basic Insulation test applicable to Mains (1500V ac rms), and also the reinforced insulation test (3000V ac rms). The crimps are therefore acceptable for use for mains voltages up to 250V ac rms, when used with insulated wire that is adequately rated for Mains voltages.
